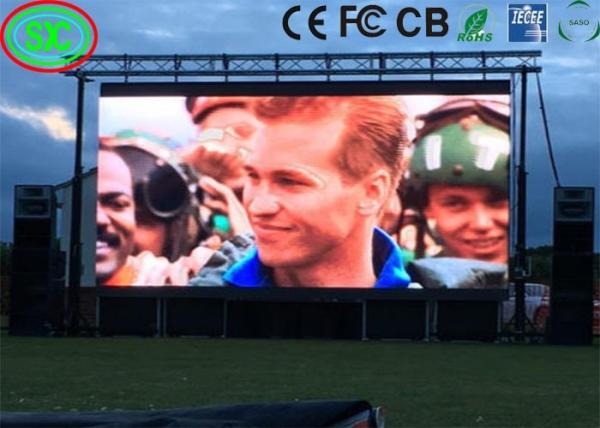

outdoor USB transfer pakistan P20 building advertising led screen
Specifications :
| outdoor DIP P20 |
| Resolution/mm | 20 |
| Pixel configuration | 1R1G1B |
| Pixel density/pixels/m² | 2500/m² |
| Module resolution | 16x8 |
| Module size/mm | 320x160mm |
| View distance | 14-300m |
| Single point brightness adjust | Can be added |
| Single point color adjust | Can be added |
| White balance brightness | >7500cd/㎡ |
| Color temperature | 6500K-9500K |
| Horizontal view angle | 120(degrees) |
| Vertical view angle | 60(degrees) |
| Signal Process bit | 10 or 16bit |
| Grey process | 1024x1024x1024 16834x16834x16834 65536x65536x65536 |
| Control distances | Internet cable:100m, multimembrane:500m, monofilm:2km |
| Driving mode | Constant driving current |
| Scanning mode | static full color |
| Frame rate | 60Hz |
| Refresh frequency | >3000Hz |
| Control mode | Computer synchronous |
| Brightness adjusted range | Manual, automatic operation, stepless continuous adjusted |
| 255 steps. No grey loss |
| Out of control point | <1/10000 |
| Working hours | ≥72hours |
| Mean Time Between Failure | >5000hours |
| Life time | 100000hours |
| Life-all-white(brightness halving) | 50000hours |
| Environment temperature range | Operating temperature range: -20-45℃ |
| Self-check technology | LED spot self-check, communications check, power check, |
| temperature monitor(need customization) |
| Remote monitoring | Remote supervision and control, record potential fault, |
| send out warning signs to the operators.(need customization) |
| Software environment | WindowsNT,Windows1999,WindowsXP |
| Luminous point width between centres | Deviation<3% |
| Brightness uniformity | <10% |
| Color uniformity(chromaticity coordinate) | ±0.003 |
| Power supply request | AC85-264V(50Hz-60Hz) |
| Contrast | (1000:1) |
| System protection | Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration |
| Humidity(working) | working:10-95% |
| Humidity(storing) | storing:10-95% |
♣.Advantage and Features:
1) High brightness, adjustable, can meet customer requirements according to the application environment.
2) Optimal uniformity, well solves the mosaic problem, with excellent light consistency
3) For images and text, it has a clear, delicate and real display effect
4) Large viewing angle, 150 degrees horizontal line, 120 degrees vertical line, within this range, you can watch at any angle, no image change, no color shift
5) Each LED light can be repaired, so the maintenance cost is low and easy to repair.
♥. Application: 1) Full-color LED display: Make red, green and blue colors uniformly or compactly into a point, evenly distributed on the panel, so that the entire display is formed 2) Commonly used in sports, advertising, banks, stock exchanges, stations, ports, shopping malls, telecommunications, offices, schools, monitoring, restaurants, entertainment venues.
1. Warranty and Maintenance
All our products are warrantied for up to 3 years (depending on the product). Our LED displays are built to handle any extreme weather. But if a problem does occur, our technical support service ensures your LED display has as little downtime as possible.
2. Installation Support
Our technicians & partners will facilitate your display installation. No need to call third-party companies to get and install your new acquisition or to rent heavy & expensive equipments, we are taking care of everything. We know the installation process from A to Z.
Shipping Detail:
UPS/Fedex/TNT/DHL, By air, By sea
How to be our distributor?
To be our distributor,We can share our profit together with you in every year,Also we can send our engieer or sales to your compay to support your business,also for led screen after-service,We will together with you to the after-service in the whole led screen life time
Product Tags:
|
|
Outdoor Waterproof P20 Building Advertising Led Screen Led Video Wall Ultra-Clear Customizable Images
|
