Brand Name : SCXK
Model Number : SMD P4
Certification : CE,FCC,RoHs,ISO
Place of Origin : CHINA
MOQ : 16 sqm
Price : negotiation
Payment Terms : L/C, D/A, D/P, Western Union, T/T, MoneyGram
Supply Ability : 4300 sqm month
Delivery Time : 6-16 working days
Packaging Details : flight case, wooden case, carton, it is up to you.
Screen Dimension : 512x512mm LED Panel
LED Chip : TaiWan Epistar
Brightness : >2000cd
LED Cabinet : Die-casting Aluminum
LED Cabinet Size : 512x512mm
Life-span : 100,000Hours
Warranty : 2 years
SCX LED 256x128 module 3840Hz high refresh Kinglight black SMD2020 512x512mm panel rental p4 indoor led stage screen
TV studio/station/church stage fixed installation 512x512mm aluminum panel full color cheap indoor p4 led screen
♦ Product specification
indoor SMD P4 | ||||||||||||||
Lamp size | 2121 | |||||||||||||
Resolution/mm | 4 | |||||||||||||
Pixel configuration | RGB 3 in 1 | |||||||||||||
Pixel density/pixels/m² | 62500/m² | |||||||||||||
Module resolution | 32x32 | |||||||||||||
Module size/mm | 128x128 | |||||||||||||
View distance | ≥4m | |||||||||||||
Single point brightness adjust | Can be added | |||||||||||||
Single point color adjust | Can be added | |||||||||||||
White balance brightness | >1800cd/㎡ | |||||||||||||
Color temperature | 6500K-9500K | |||||||||||||
Horizontal view angle | 120(degrees) | |||||||||||||
Vertical view angle | 120(degrees) | |||||||||||||
Signal Process bit | 10 or 14 bit | |||||||||||||
Grey process | 1024x1024x1024 16834x16834x16834 65536x65536x65536 | |||||||||||||
Control distances | Internet cable:100m, multimembrane:500m, monofilm:5km | |||||||||||||
Driving mode | Constant driving current | |||||||||||||
Scanning mode | 1/16 | |||||||||||||
Frame rate | 60Hz | |||||||||||||
Refresh frequency | >1200Hz | |||||||||||||
Control mode | Computer synchronous | |||||||||||||
Brightness adjusted range | Manual, automatic operation, stepless continuous adjusted 255 steps. No grey loss | |||||||||||||
Out of control point | <1/10000 | |||||||||||||
Working hours | ≥72hours | |||||||||||||
Mean Time Between Failure | >5000hours | |||||||||||||
Life time | 100000hours | |||||||||||||
Life-all-white(brightness halving) | 50000hours | |||||||||||||
Environment temperature range | Operating temperature range: -20-45℃ Storing temperature range: -30-65℃ | |||||||||||||
Maximum power:/㎡ | <1100W | |||||||||||||
Average power:/㎡ | <280W | |||||||||||||
Self-check technology | LED spot self-check, communications check, power check, temperature monitor(need customization) | |||||||||||||
Remote monitoring | Remote supervision and control, record potential fault, send out warning signs to the operators.(need customization) | |||||||||||||
Software environment | WindowsNT,Windows1999,WindowsXP | |||||||||||||
Luminous point width between centres | Deviation<3% | |||||||||||||
Brightness uniformity | <10% | |||||||||||||
Color uniformity(chromaticity coordinate) | ±0.003 | |||||||||||||
Power supply request | AC85-264V(50Hz-60Hz) | |||||||||||||
Contrast | (1000:1) | |||||||||||||
System protection | Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration | |||||||||||||
Humidity(working) | working:10-95% | |||||||||||||
Humidity(storing) | storing:10-95%
|

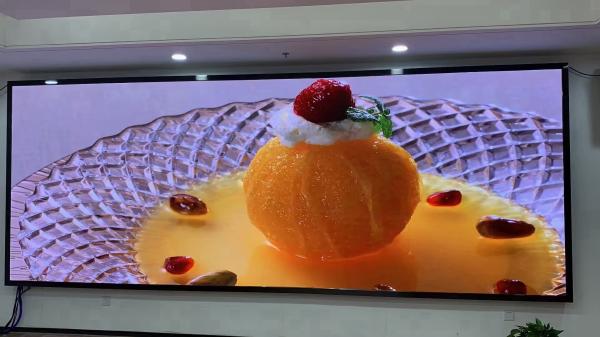

Our case
our service
Pre-sale service:
1. Reply enquiries in 24 hours.
2. Market research and forecast for customer.
3. Provide unique and professional solutions based on customer's requirement.
4. Data sheet and samples offer.
5. All for client's need.
In-sale service:
1. Tracking report in producing.
2. Quality test report for every order.
3. Photos and videos as per customer's requirement.
4. Free spare parts.
After-sale service:
1. One year replacement, two years warranty.
2.Maintenance guidance and problem solution supplied in 48 hours.
3. Free technician training.
4. Full set of documents free of charge, which including installation guidance, software operation manual, easy maintenance manual and control system software CD and so on.
5. Special service for big project, such as stadium, exhibitions, squares and so on.
Our service
Service Concept
We believe in taking the initiative, maintaining honesty and trustworthiness, which means we will respond quickly to customer questions and do everything possible to meet customer demands.
Service Content
1. 24-hour hotline service, including counseling and technical guidance.
2. On-line service.
3. Failure maintenance of LED panels.
4. Free professional technical training
5. Paid software upgrade.
6. Warranty service.
7. Engineering technical service.
Warranty Period
Each of our LED display products comes with at least three years warranty and a lifetime maintanance services.
![]() |
P4 Indoor LED Screen/512x512mm Die-casting Rental LED Display/512x512mm Die-casting Rental LED Screen Images |
