Brand Name : SCX
Model Number : P3.91
Certification : CE,ROHS,FCC,SASO
Place of Origin : China
MOQ : 1 SQM
Price : USD 600-2000
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability : 2000 sqm per month
Delivery Time : 7working days
Packaging Details : Flight Case , Size: 60x62x50cm, Wooden Case, Size:70x65x55cm
Module Size : 250mm x 250mm
Brightness : ≥1100 cd
Module Weight : 0.3kg
Pixel Format : 1R1G1B
Color Temperature Condition : 3500K~9500K,(can be adjustable)
Number of Colors : 16.7 trillion
Usage : dj,show,disco
Display function : Video,pictures,Animation,words,Graphics
Life span : 100000hours
Manufacturing Led Stage Backdrop Screen Indoor/ Outdoor P3/P3.91 Rental LED Display For Stage/Concert/Events/Competition
Features :
1. Corner protection design
This can avoid cabinet crush,and protect the leds during transportation and installation ,which reduce maintenance cost,reduce the likelihood of any service issue.
2. Maintenance difficulties are solved and it truely realizes dot-to dot mainterance.
3. Dual back-up for signal cable
4. this cabinet are avaliable for P2.97, P3.9 and P4.8 , both indoor and outdoor.
5. Power box modular design, Future maintenance is more convenient.
Product Description
Item | Specification | ||||||||
LED Parameters | Luminous Intensity | R:620-630, G:520-535, B:465-475 | |||||||
Wavelength | R:400-500mcd, G:1800-2200mcd, B:350-450mcd | ||||||||
Test Condition | R:25℃,20mA, G:25℃,20mA, B:25℃,20mA | ||||||||
LED Module | Led Type | SMD 3 IN 1 | |||||||
Pixel Pitch | 3.91 mm | ||||||||
LED Shape & Size | 2mm SMD 2121 | ||||||||
Encapsulation Type | 1R1G1B | ||||||||
Module Dimension | 250mmx250mm | ||||||||
Module Resolution | 64 ×64 | ||||||||
Module Weight | 0.20 KG | ||||||||
Pixel Density | 65410 | ||||||||
Driving Mode | 1/16 | ||||||||
Module Power Consumption | 20 W | ||||||||
LED Cabinet | Cabinet Size | 500mm(W)x 500mm(H)/ 500mm(W)x 1000mm(H) | |||||||
Cabinet Thickness | 70 mm | ||||||||
Cabinet Resolution | 128x128 | ||||||||
Cabinet Material | Die Casting Aluminum Cabinet | ||||||||
Screen | Use | Rent | |||||||
Cabinet Weight | 6.5 KG/12kg | ||||||||
Optical parameters | Brightness | ≥1500 cd | |||||||
Contrast Ratio | ≥3000:1 | ||||||||
Single-point Brightness Correction | Available | ||||||||
Single-point Color Correction | Available | ||||||||
Surface Evenness | GAP< 1mm | ||||||||
Color Temperature Condition | 3500K~9500K,(can be adjustable) | ||||||||
Viewing angle | 140°(Horizontal),140°(Vertical) | ||||||||
Gray Scale | 16 bit | ||||||||
Minimum Viewing Distance | 3.91 m | ||||||||
Brightness Adjustment | 0-100% 8 levels | ||||||||
Power Supply | Operation Power | AC90-260V 50-60HZ | |||||||
Max Power Consumption | 700 W /m² | ||||||||
Average Power Consumption | 350 W /m² | ||||||||
Control System | Control Mode | Synchronous Control by Linsn system | |||||||
Frame Update Frequency | ≥600Hz | ||||||||
Screen Refresh Frequency | ≥38400Hz | ||||||||
Gamma Correction | (-0.5—5.0) | ||||||||
Input Signal Support | Composite,S-Video,Component, VGA,DVI,HDMI,SDI,HD_SDI | ||||||||
Control Distance | UTP CAT5E:100m;Multi-mode Fiber:500m; Single-mode Fiber:10km | ||||||||
Video Signal | MPG /MPEG/MPV/MPA/ AVI/SWF/RM/RA/RMJ/ASF | ||||||||
Support VGA Mode | 800 x 600, 1024 x 768, 1280 x 1024, 1600 x 1200, | ||||||||
Brightness Correction | Dot by Dot,module by module, cabinet by cabinet | ||||||||
Operating Temp. | - 10° —+55° Celcius degree | ||||||||
Operating Humidity | 10 - 90 % RH | ||||||||
Operating Life | 100,000 Hours | ||||||||
Protection Level | IP34 | ||||||||
MTBF | 5000 Hours | ||||||||
Out of Control Pixel Rate | 0.01% |

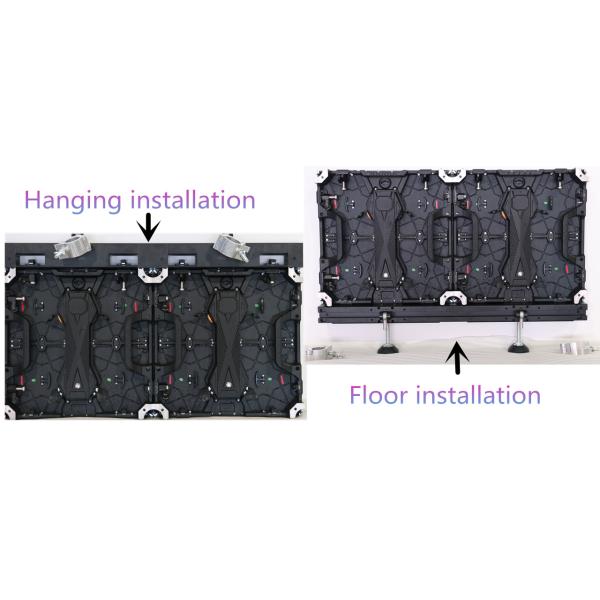

Pictures
Our Projects
FAQ
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than
A: Low MOQ, 1pc for sample checking is available
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
A: Yes, we offer 2-5 years warranty to our products.
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less
than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For
defective batch products, we will repair them and resend them to you or we can discuss the solution i
ncluding re-call according to real situation.
